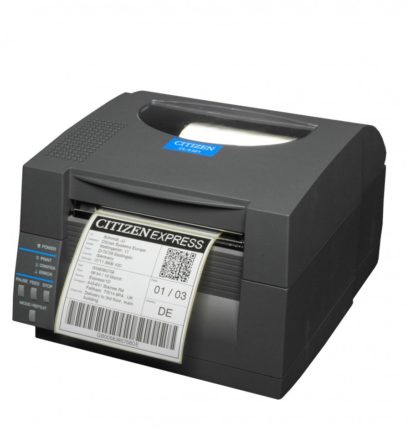

The Citizen CL-S521 label printer offers a reliable, easily integrated industrial desktop printing solution. These units are supplied as standard with on-board ZPL® and Datamax® emulations plus BASIC Interpreter programming support, offering maximum flexibility and easy compatibility with other applications.

Features

Handles a range of media types, including specialised labels and wristbands.
Powerful on-board 32 bit processor for fast output
16Mb of RAM and 4Mb of flash

Key Benefits

Paper width: Variable paper width – 0.5 inches (12.5 mm) – 4.6 inches (118.1 mm)
Paper load: Durable design – Citizen’s proven Hi-Lift™ all-metal mechanism
Printing Speed: Fast print out – 6 inches per second (150 mm per second)
Media support: Large media capacity – holds rolls up to 5 inches (127 mm)
Ribbon options: Wide range of ribbon options – Uses up to 360 metres inside and outside wound ribbons
Paper thickness: Paper thickness up to 0.250mm
Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
No more unreadable labels – the ARCP™ ribbon control technology assures clear prints.
Low space requirement – integrated power supply enables clean work station
Energy:
- Internal power supply for reliability
Media sensor:
- Black mark sensor
- Adjustable media sensor
- Label gap sensor

Printing Technology	Direct Thermal
Print Speed (maximum)	6 inches per second (150 mm/s)
Print Width (maximum)	4 inches (104 mm)
Media Width (min to max)	0.5 to 4 inches (12.5 to 118 mm)
Media Thickness (min to max)	63.5 to 254 μm
Media Sensor	Fully adjustable gap, notch and reflective black mark
Media Length (min to max)	0.25 to 64 inches (6.35 to 1625.6 mm)
Roll Size (max), Core Size	Inside diameter 5 inches (125 mm) External diameter 8 inches (200mm) Core size 1 inch (25mm)
Case	Hi-Open™ industrial ABS case with safe close
Mechanism	Hi-Lift™ metal mechanism with wide opening head
Control panel	4 buttons and 4 LEDs
Flash (Non-Volatile Memory)	4 MB total, 1 MB available for user
Drivers and software	Free-of-charge on CD with printer, including support for various platforms
Size (W x D x H) and Weight	231 x 289 x 183mm, 3.6 Kg
Warranty	2 years on printer. 6 months or 30 Kms on printhead
Emulations (Languages)	Datamax® I-Class™ & DMX400™ Zebra® ZPL-II® Cross-Emulation™ – automatic switching between Zebra® ZPL-II® and Datamax® I-Class®, DMX400 BASIC interpreter for data stream processing
RAM (standard Memory)	16 MB total, 1 MB available for user
Resolution	203 dpi
Main Interface	Dual Interface Serial (RS-232C), USB (version 2.0, full speed)
Interface	Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps Ethernet (10/100 BaseT) Parallel (IEEE 1284 compliant)

Citizen CL S521 Desktop Label Printer Datasheet

Citizen CL S521 Desktop Label Printer User Manual
