Honeywell CK67 Ultra-Rugged Mobile Computer

Honeywell

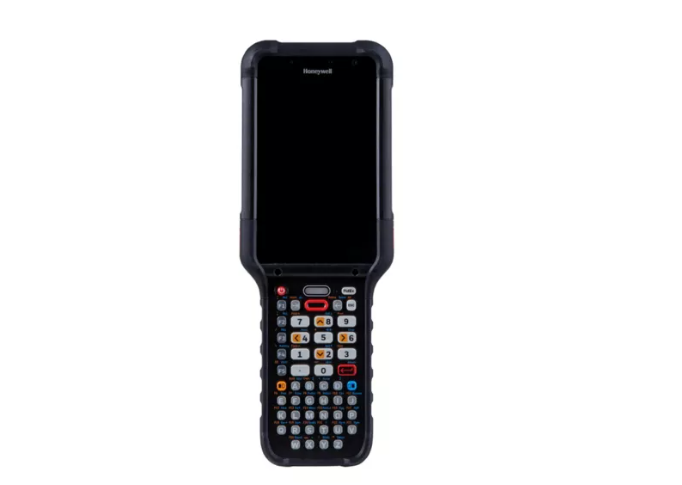

Honeywell CK67 Ultra-Rugged Mobile Computer

Category: Brand:

CK67 mobile computers, built on the Mobility Edge™ platform, are ultra-rugged, all-purpose productivity devices ensuring reliable performance, ergonomic design, 5G and Wi-Fi 6E data connectivity for users in Distribution Centers and Warehouses.

The Honeywell CK67 Ultra-Rugged Mobile Computer is built on the Mobility Edge™ platform, a durable, stable, secure foundation for effective, long-lasting solutions. The CK67 delivers the lifecycle, security and durability required by serious businesses. The CK67 harnesses the latest Qualcomm® QCM4490 processor and memory technology for high performance with guaranteed support through Android 18.

Connectivity

The CK67 has the latest 5G and Wi-Fi 6E chipset technology to stay connected in both indoor and outdoor environments. With the latest 5G release, CK67 offers the highest bandwidth, versatility and lowest latency available for warehouse and DC workers to always stay connected.

Whether you are on a private 5G or CBRS network, or a Wi-Fi 6E environment, your workers can continue their workflows with the most reliable uptime. Each CK67 comes with a standard 2nd BLE and a USB-C port for alternate charging options or data transfer.

Durable and Reliable

The Honeywell CK67 Ultra-Rugged Mobile Computer is designed to endure the most challenging environments in warehouses and DCs. Warehouses are as busy as ever and operators need to keep their workflows running efficiently with maximum uptime.

Users in warehouses can rely on the CK67, withstanding up to 8ft drops across operating temperatures and 4,000 1.0m tumbles. Users can be confident with the intense durability testing the CK67 undergoes before release, that it will solidify and keep operations and is the ultimate long-term investment

Focus on Ergonomics

The CK67 comes in an updated form factor, with a sleek modern design, a larger screen, and a more ergonomic scan handle to satisfy most users and applications.

The keypads have updated buttons for responsiveness and better spacing, for an enhanced user experience. And the balance of the CK67 has been optimized to feel light in the hands of the users. The CK67 is a significant advance in a mobility device to enhance the user satisfaction.

Key features of the Honeywell CK67 Ultra-Rugged Mobile Computer

  • Robust Android mobile computer with 4.3-inch display and keyboard
  • 8GB DDR5 RAM, 128GB UFS Flash
  • Scan engine: Honeywell FlexRange XLR, FlexRange or S0703
  • IP65 and IP68-certified
  • USB-C, Wi-Fi 6E, Bluetooth 5.3, 5G, NFC and Push to Talk (PTT)
  • Qualcomm QCS4490/ QCM4490 Octa-Core porcessor
  • Supports Operational Intelligence, extensive accessories, backwards compatible
  • Cold Storage up to -30°C (-22°F)
  • Ultra-Rugged
  • Dimensions: 23.2 x 8.4 x 4.6 cm
  • Application
  • Distribution Center
  • Warehouse
  • Yards
  • Camera
  • 8MP, 13MP
  • Camera Position
  • Front and Rear

Dimensions

  • Overall Dimensions
  • 22.7cm x 8.3cm x 4.2cm; 8.3in x 3.3in x 1.6in
  • Weight: 508g

Scanning Specifications

  • Decode Capability
  • Honeywell FlexRange™
  • Standard Range Engine (1D/2D barcode symbologies)
  • Yes

Network

  • WWAN Specifications
  • 4X4 MIMO supported: 5G: n2, n7, n25, n30, n38, n41, n48, n66, n77, n78, n79; 4G : B2, B4, B7, B25, B30, B38, B41, B42, B43, B48, B66
  • 5G FR1: Bands 1, 2, 3, 5, 7, 8, 12, 13, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79
  • 5G NSA – DL: ~2500 Mbps, UL: ~1050 Mbps
  • 5G SA – DL: ~2300 Mbps, UL: ~1050 Mbps
  • AT&T FirstNet Compliant
  • Global bands support, device certified with GCF-PTCRP, ATT, TMO, VZW
  • LTE Advanced Support: Up to 390 Mbps CAT13 LTE downlink. Up to 75 Mbps CAT5 LTE uplink 4G-LTE DL Cat-18, ~800 Mbps; 4G-LTE UL Cat-18, ~200 Mbps
  • LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 66, 71
  • WWAN Radio
  • WLAN Specifications
  • 5GHz: 802.1/n/ac/ax- 20MHz, 40MHz, 80MHz, 160MHz upto 2402Mbps; 802.11ax20MHz, 40Mhz, 80MHz, 160Mhz-upto 2402 Mbps
  • Data Rates: 2.4GHz:802.11b/g/ ax- 20MHz -upto 286.8 Mbps
  • Dual Band Simultaneous(DBS)
  • IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2×2 MU-MIMO
  • IPv4
  • IPv6
  • Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible
  • Triband (2.4GHz, 5GHz, 6GHz)
  • WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
  • Wi-Fi certified
  • Wi-Fi™ 6E (801.11ax)
  • Wi-Fi™ 6E certified
  • GPS Specifications
  • Yes
  • Computer Wireless Communication
  • Yes
  • Bluetooth Specifications
  • 5.3

Software & Firmware

  • Operating System
  • Released with Android 14 and guaranteed through Android 18
  • Platform
  • Mobility Edge

Memory & Data

  • Memory
  • 8GB DDR4x RAM, 128GB UFS Flash
  • User-accessible microSD card up to 2TB (SDXC/SDHC/SDIO – compliant)

Hardware

  • Processor
  • QCM4490
  • Qualcomm QCS4490/QCM4490 octa-core 2.4GHz
  • Display Size
  • 10.9cm (4.3in)
  • Display Resolution
  • 800 x 480
  • Network
  • Wi-Fi 6E
  • Keyboard
  • 51 or 53-key alpha numeric, 38 or 42-key numeric function, or 30- key large numeric keypads, plus two programmable side buttons
  • Backlight LED
  • Yes

Electrical

  • Battery Type
  • Lithium Ion
  • smart battery with integrated diagnostic tools
  • Battery Capacity
  • 7000mAh

Environmental

  • Storage Temperature Range
  • -30°C to +70°C (-22°F to +158°F)
  • Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
  • Cold Storage
  • Yes

Standards & Approvals

  • Tumble Specifications
  • Exceeds 4,000 tumbles at 1m (3.28ft) per IEC 60068-2-32 specification
  • Protection Ratings
  • Certified for IP65 & IP68
  • Drop Specifications
  • 10ft drop
  • Multiple 2.4m (8ft) drops to concrete booted per MIL-STD-810H at -10°C to 50°C (14°F to 122°F)

Service Terms

  • Warranty Duration
  • One year factory warranty

Others

  • Scan Distance
  • Long Range (0-20m)
  • Mid Range (0-5m)
  • Standard Range (0-1m)
  • Keypad
  • Alphanumeric
  • Numeric
  • Environment
  • Standard
  • Durability
  • 4000 1.0m tumbles
  • Connectivity
  • Wi-Fi & Cellular

Honeywell CK67 product datasheet
