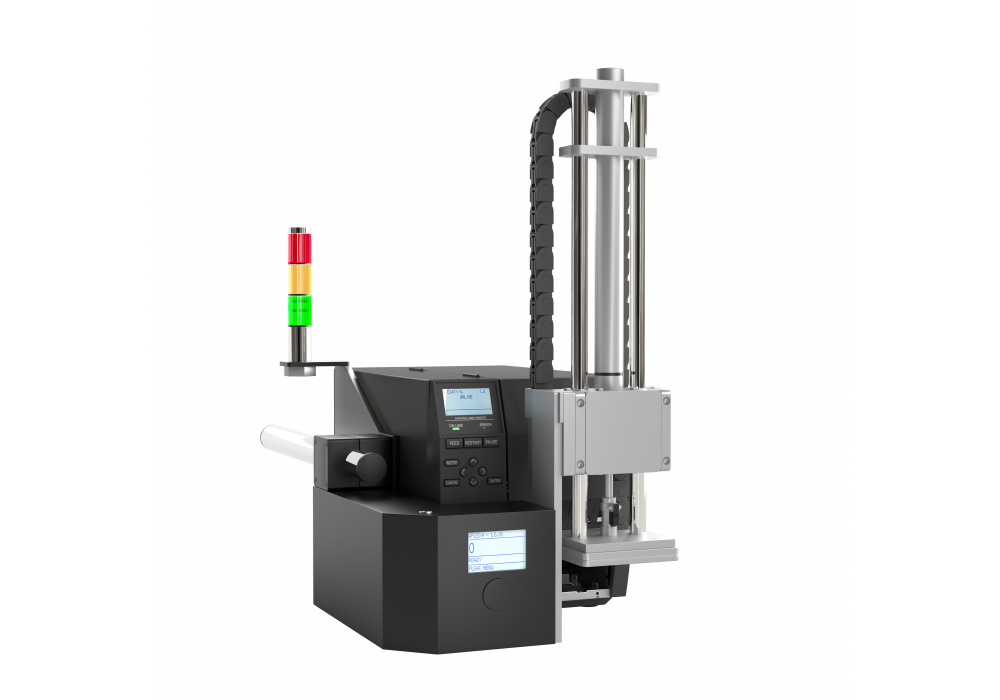

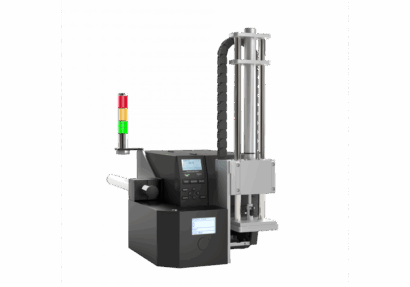

Toshiba APLEX4 Print & Apply System

The Toshiba Aplex4 is a high-speed labeling system capable of labeling up to 30 items per minute. It offers versatile application types, including Pressure Apply and Tamp Blow Apply, making it ideal for labeling moving or fragile items with the help of a proximity sensor.

The system supports both top and side application. The Toshiba Aplex4 accommodates label sizes ranging from 25x25mm to 148x200mm (with an optional Aplex6 conversion kit for larger labels).

The Applicator arm stroke length is 250mm once clear of the printer (400mm in total). The Aplex4 is designed for precision and flexibility. It operates in two print modes: Dynamic, where each label is a unique print job, or Reprint, which allows for continuous printing of the same label.

The system also features dual apply modes, offering the option to print and apply immediately or print and hold the label for later application when triggered.

To function, the Aplex4 requires an air pressure of 4-6 bar and comes equipped with a standard 100x100mm label pad, with other pad sizes available to meet various needs. Whether printing and applying labels in real time or handling them for future use, the Toshiba Aplex4 is an adaptable, high-performance solution for diverse labeling requirements.

Applications:

• Pallet labels, shipping labels
• Flexible sizes of boxes, cartons or products on the same line
• Product labeling, processing / food distribution
• Distribution centers receiving / shipping, cross docking
• Courier, transport, logistics
