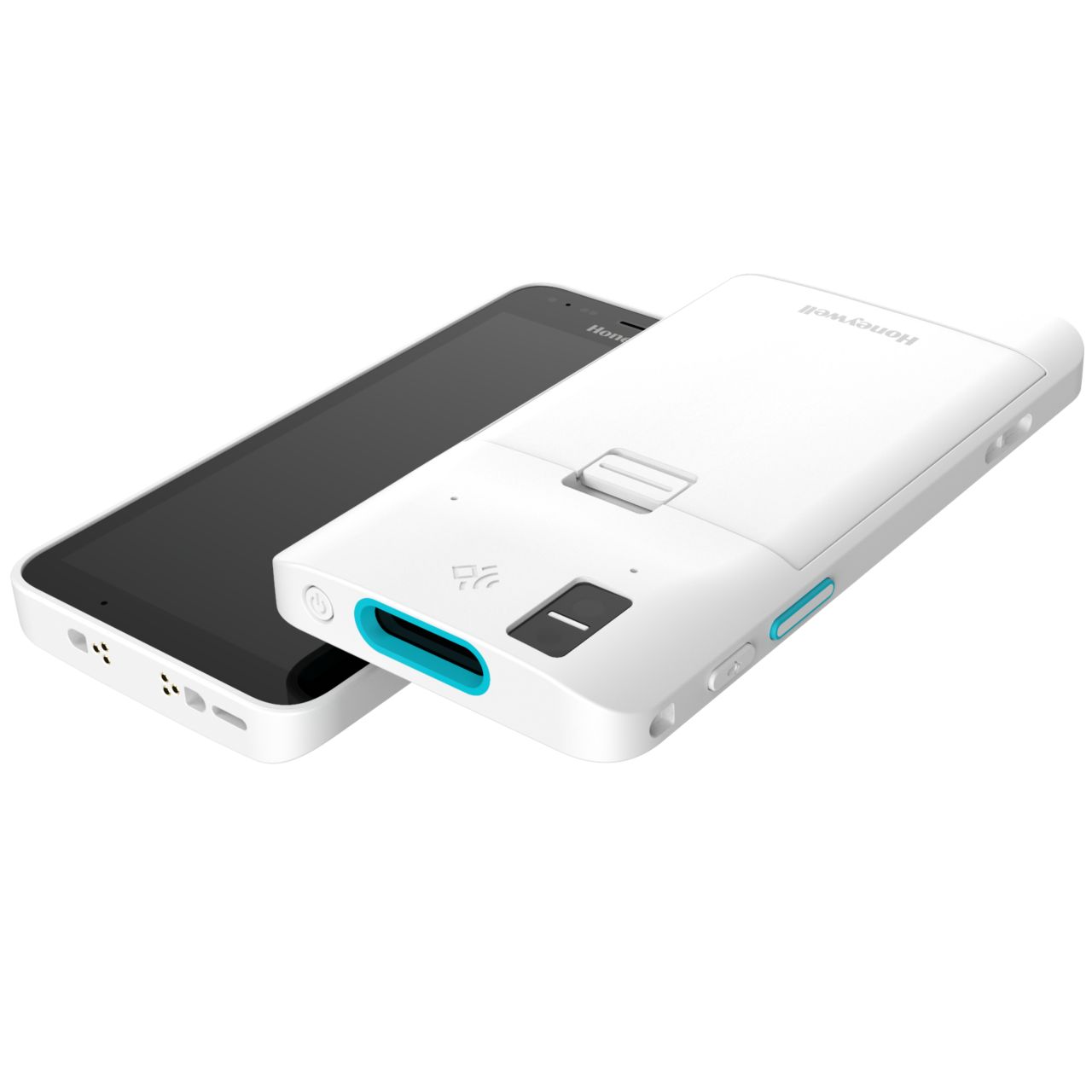

CT30 XP, 2D, BT (BLE), Wi-Fi, NFC, GPS, IST, warm-swap, GMS, white, Android
CT30 XP, 2D, BT (BLE), Wi-Fi, NFC, GPS, IST, warm-swap, GMS, white, Android
£1,204.79 inc VAT£1,003.99 excl VAT
portable data collection device, healthcare, 2D, imager (N6700), GPS, micro SD-Slot, desinfectable housing, Cam (13MP), front camera (8MP), Interactive Sensor, warm swappable, e-compass, 14 cm (5.5”), Bluetooth (BLE), Wi-Fi (802.11ax), NFC, 2160×1080 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 6 GB, Flash: 64 GB, Android (11), IP67, software, Google Mobile Services, battery, 3400 mAh, white
Delivery time: 2-4 days
portable data collection device, healthcare, 2D, imager (N6700), GPS, micro SD-Slot, desinfectable housing, Cam (13MP), front camera (8MP), Interactive Sensor, warm swappable, e-compass, 14 cm (5.5”), Bluetooth (BLE), Wi-Fi (802.11ax), NFC, 2160×1080 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 6 GB, Flash: 64 GB, Android (11), IP67, software, Google Mobile Services, battery, 3400 mAh, white
FEATURES
- Camera
- 8-megapixel front camera
- 13-megapixel rear camera
- Application
- Soft Goods Retail, General Merchandise and Healthcare
- Housing Grade
- Disinfectant Ready Housing
- For Use With
- Android
- Features
- Compatible with Universal Dock
DIMENSIONS
- Overall Dimensions
- 154 mm x 76 mm x 12.6 mm (6.06 in x 2.99 in x 0.50 in)
SCANNING SPECIFICATIONS
- Decode Capability
- 1D/2D Barcode Symbologies
NETWORK
- RFID Specifications
- Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
- WWAN Specifications
- AT&T FirstNet Compliant
- GSM: 850, 900, 1800, 1900 (Quad Bands)
- LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71
- UMTS/HSPA+ (3G): Bands 1, 2, 4, 5, 6, 8, 9, 19
- Up to 390 Mbps CAT13 LTE downlink and up to 75 Mbps CAT5 LTE uplink:
- WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)
- Bluetooth Specifications
- V5.1 Bluetooth and BLE; 2nd BLE availble on all SKUs except CT30P-XXX-XXXXXNX . Bluetooth profiles includes HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
- WLAN Specifications
- CT30P-X0N: Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax and 2×2 MU-MIMO;
- CT30P-L0N, CT30P-L1N: Wi-Fi 5, IEEE 802.11 a/b/g/n/ac
- All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc
- All other configurations: IEEE 802.11 a/b/g/n/ac; All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc
- GPS Specifications
- Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo and BeiDou
SOFTWARE & FIRMWARE
- Operating System
- Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility
HARDWARE
- Display Size
- 13.97 cm (5.5 in)
- Scan Engine Type
- LED aimer and illumination
- Processor
- Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
- Scan Engine Model
- Honeywell N6700
- Display resolution
- Full High-Definition (2160 x 1080)
ELECTRICAL
- Battery Types
- Replaceable between shifts; Warm-swappable
- Battery capacity
- 3400mAh
- Battery Type
- Li-Ion; smart battery with integrated diagnostics tools
ENVIRONMENTAL
- Storage Temperature Range
- -30°C to 70°C (-22°F to 158°F)
- Operating Humidity
- 5% to 95% (non-condensing)
- Operating Temperature
- -10°C to 50°C (14°F to 122°F)
STANDARDS & APPROVALS
- Drop Specifications
- 1.2 m (4 ft) to concrete at through operating temperature per MIL-STD 810H; 1.5m (5ft ) to concret at room temperature per MIL-STD 810H.
- Protection Ratings
- IP67
- Tumble Specifications
- Exceeds 500 0.5 m (1.64 ft) tumbles per IEC 60068-2-32 specification
SERVICE TERMS
- Warranty Duration
- One-year factory warranty
OTHERS
- Keyboard
- Full Touch Screen Device
- Camera Position
- Rear and Front
- Operating System Type
- Android
- Platform
- Mobility Edge
