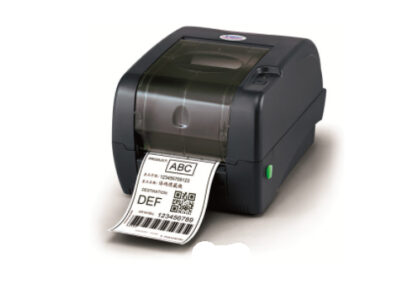

TSC TTP-247 Series Desktop Printer

The TSC TTP-247 thermal transfer desktop barcode printer runs at 7 inches per second, printing up to 4 inches wide at 203 dpi resolution.  A second model in the series – the TTP-345 – offers high resolution 300 dpi printing at 5 inches per second.  Both models offer 8 MB of SDRAM and 4 MB of onboard Flash memory.  Gigabytes of Flash memory can be added via an onboard SDHC card reader.

TTP-247 series offers USB 2.0, parallel and serial connectivity, plus an optional Ethernet port for networking.  It also incorporates the TSPL-EZ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®).  The languages automatically decipher and translate the format of each label as it is sent to the printer.  TSPL-EZ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.

Clamshell Design

The TTP-247 series features a user-friendly clamshell design for easy drop-in media loading, along with a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market.  Its innovative two-motor gear-driven engine is powerful enough to handle a 300-meter-long ribbon and label rolls up to 8.4 inches in diameter.

By using two motors instead of the usual one, TTP-247 series printers operate at lower torque, reducing noise, decreasing wear and tear, and extending printer life.  The platform’s user-friendly design makes it easy for operators to load and unload ribbons.

The TTP-247 series holds up to a 5-inch OD roll on a 1-inch core and, using an optional external media hanger, can accommodate a full 8.4-inch OD label roll on a 3-inch core.  With its many performance features and budget-friendly price, the TTP-247 series is by far one of the most attractive thermal transfer barcode printers on the market.

Features of the TSC TTP-247 Series Desktop Printer

• Up to 177.8 mm (7″) per sec. print speed
• 4 MB Flash memory and 8 MB SDRAM memory
• SD Flash memory expansion up to 4 GB
• User-friendly clamshell design
• Label gap sensor & full-range adjustable black mark sensor
• Parallel, serial & USB 2.0 interfaces
• Main board integrated with internal Ethernet (factory option)
• Label capacity up to 214 mm OD (8.4″ OD)
• Ribbon capacity up to 300 m (984′)
• TSPL-EZ firmware for plug-n-play ease
• Optional peel-off module, cutter module, stand-alone keyboard and scanner

Used for

• Business/Office
• Product Marking
• Compliance Labeling
• Asset Tracking
• Document Management
• Shelf-Labeling
• Shipping/Receiving
• Specimen Labeling
• Inventory Control
• Patient Tracking

Don’t forget, at Supplyline Auto ID we stock a range of accessories for the TSC TTP-247 Series Desktop Printer, including 3″ core label roller, Guillotine Cutter manual (full cut), 300 dpi Printheads and much more…
