CITIZEN DW-14 Thermal Kiosk Printer

Citizen

CITIZEN DW-14 Thermal Kiosk Printer

£226.94 inc VAT£189.12 excl VAT

DW-14 Thermal Printer Mechanism with PNE Sensor

Delivery time: 2 - 4 days

The Citizen DW-14 compact thermal kiosk printer features easy loading, a vandal proof design for ultimate reliability and with a compact footprint, it fits easily into small spaces.

The DW-14 thermal kiosk printer combines 203 dpi resolution, high speed 150mm/sec printing, and a choice of 2 or 3 inch paper widths. Operating temperatures are between -15 to +65 degrees Celsius, the DW-14 is ideal for all kiosks regardless of extreme temperatures experienced in a wide range of environments.

Features

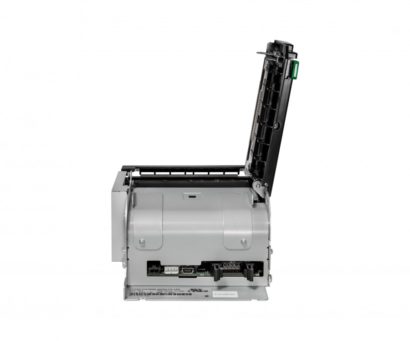

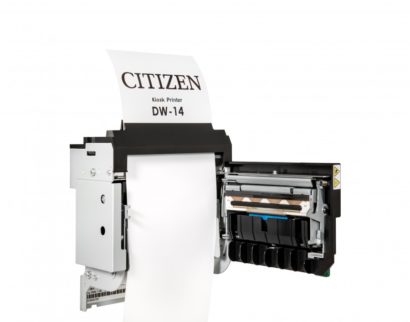

  • Paper load: Easy side opening for paper loading
  • Printing Speed: Prompt print out of receipts – up to 150mm per seconds
  • Compact design for easy mounting
  • Operating temperatures of between -15 – +65 degrees Celsius
  • Vandal proof for ultimate reliability
  • Flexible paper channel with metal guides make it easy to switch between 2 and 3-inch media
Printing Technology Direct Thermal
Print Speed (maximum)
  • 150 mm /sec.
Print Width (maximum) 72 mm
Media Width (min to max) 59 to 80 mm (+/- 0,5 mm)
Media Thickness (min to max) 65 to 75 μm
Roll Size (max), Core Size 102 mm outside diameter
Drivers and software Free-of-charge on CD with printer, including support for various platforms
Size (W x D x H) and Weight
  • 108 x 138 x 73 mm 675 g
Warranty 1 year including head and cutter
Barcodes
  • UPC-A
  • Code3of9
  • UPC-E
  • EAN-13 (JAN-13)
  • EAN-8(JAN-8),
  • Codabar, ITF
  • CODE39
  • CODE93
  • CODE128
  • CODABAR(NW-7)
  • PDF 417
  • QR Code
  • GS1-Databar
Media type Thermal receipt paper
Cutter Guillotine type, full and partial
Power supply Input voltage: 24V DC ± 10%, 2-pin connector
Reliability 100 Million pulses or 50 Km, 1 million cuts
Input buffer 4K bytes / 45 bytes
Operation environment -15 to +65°C, 10 – 85% RH
Storage environment -40 to +85°C, 10 – 85% RH
Paper sensor Paper near end sensor
Code pages 15 codepages, 17 country tables
Resolution
  • 203 dpi
Main Interface Dual Interface Serial (RS-232C), USB (version 1.1)

Citizen DW14 Thermal Kiosk Printer Datasheet
